SDCR GLASS SYSTEMS

FRAMED GLASS CLIP SYSTEM

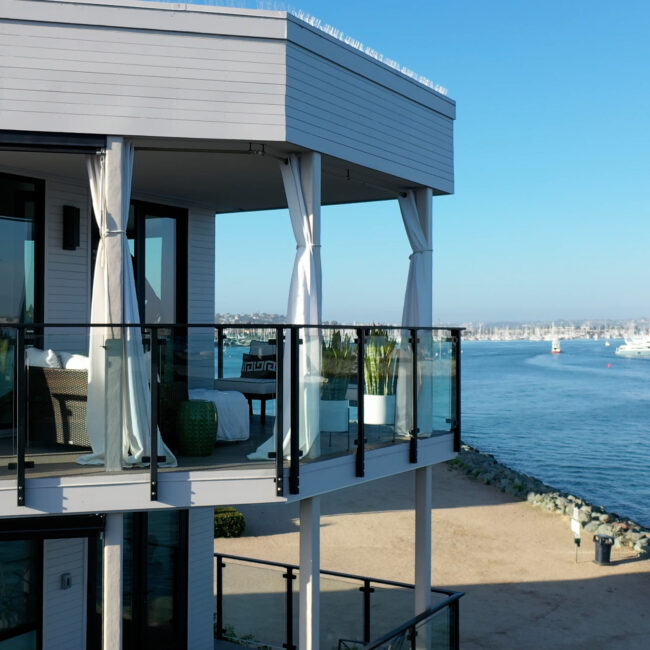

FRAMED GLASS CLIP SYSTEM

GLASS WITH WOOD OR METAL TOP RAIL

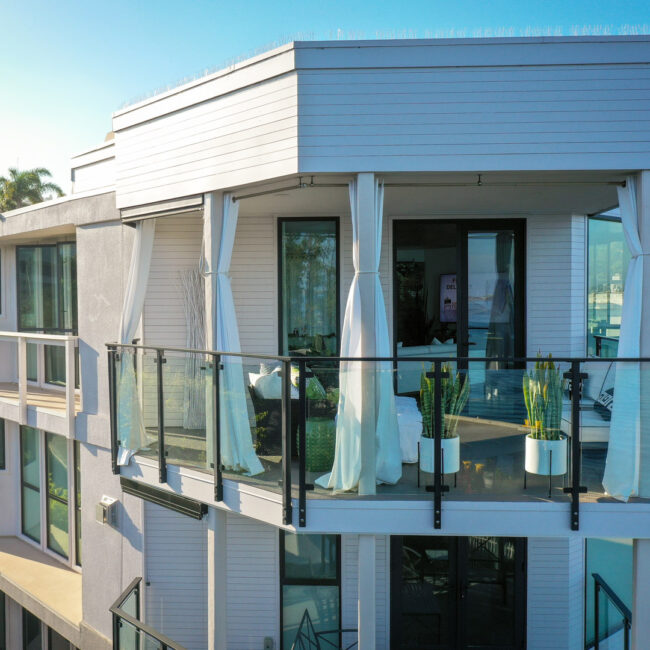

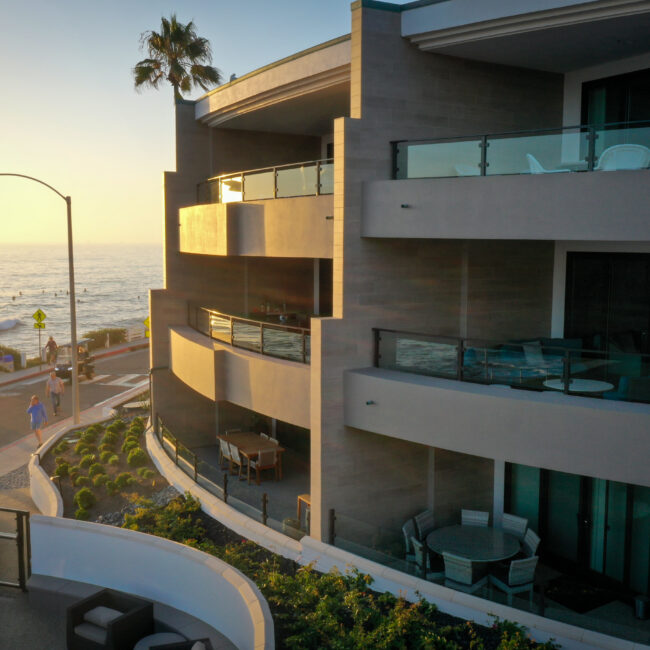

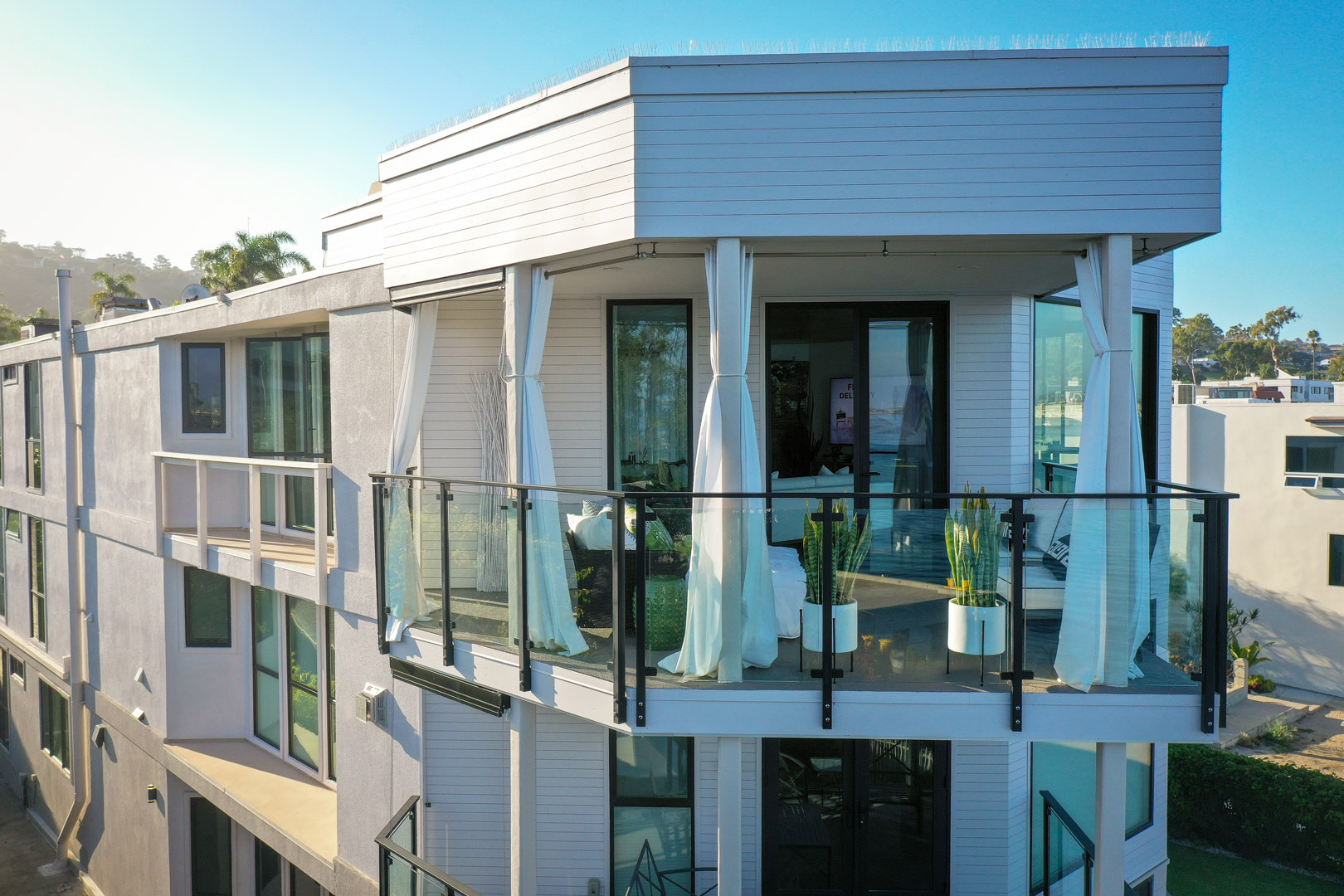

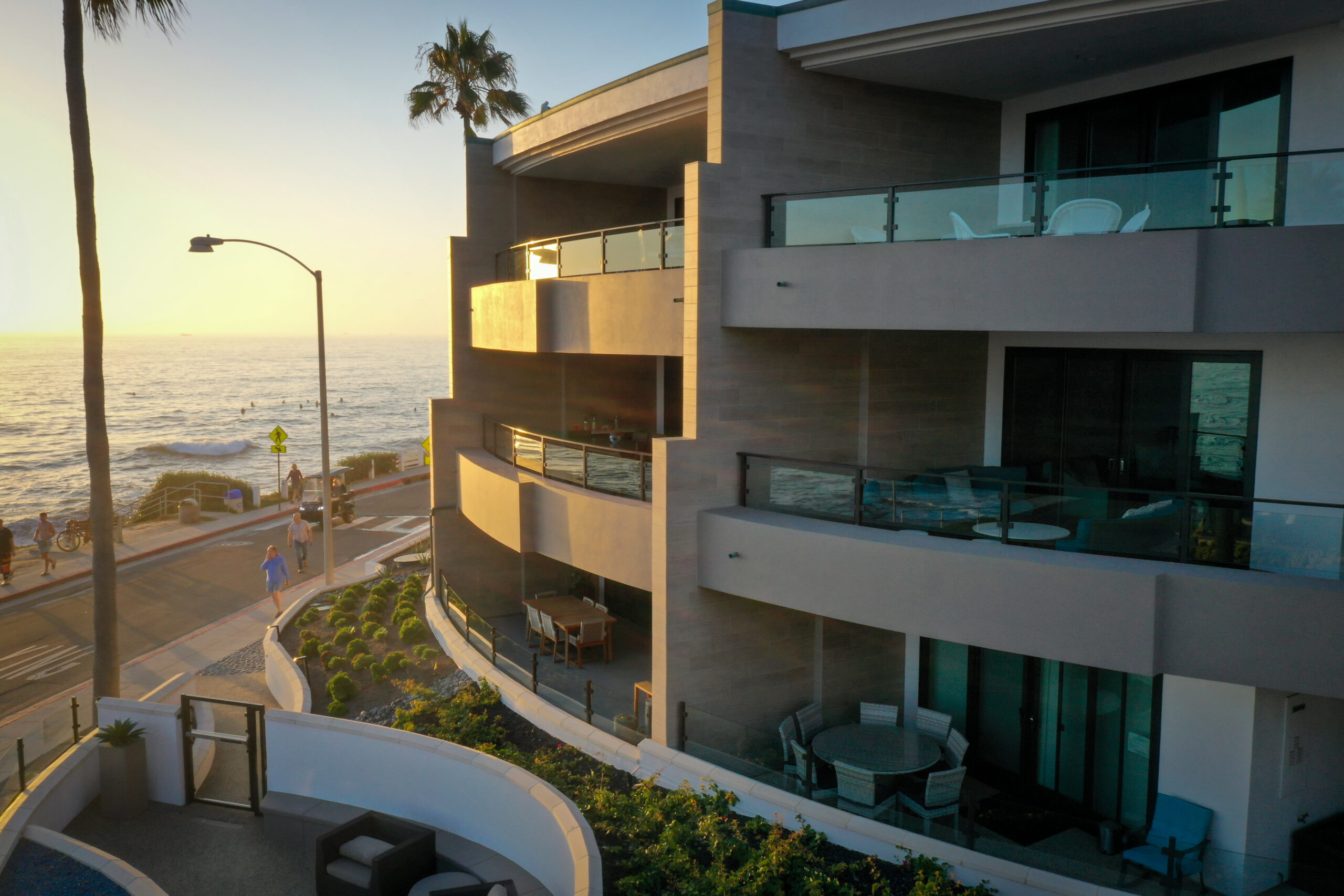

The SDCR Framed Glass Clip system is made up of our 2″ x 2″ Posts designed to accommodate our glass clips, with one of our many top rail options. This system offers expansive viewing windows with tempered glass infill of the upmost quality and clarity. All of our metal options (316 SS, 304 SS, or Powder Coated Steel) are available in this system to ensure this product line is available both interior and exterior applications. This systems have been very popular for our coastal customers to provide a break from the wind on their deck or patio. The marine grade stainless steel options offer great resistance to a corrosive environment to ensure the strutural integrity will last a lifetime!

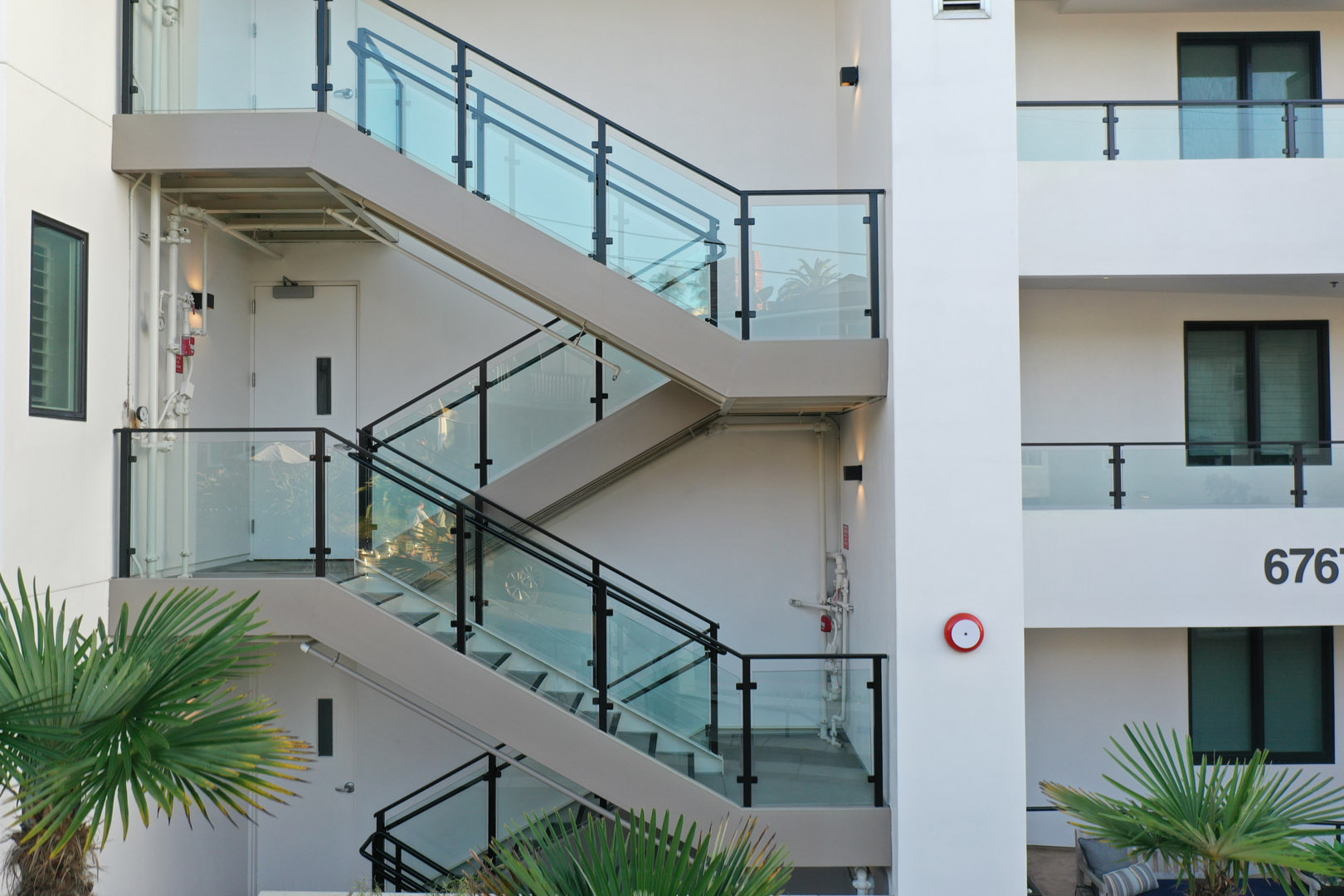

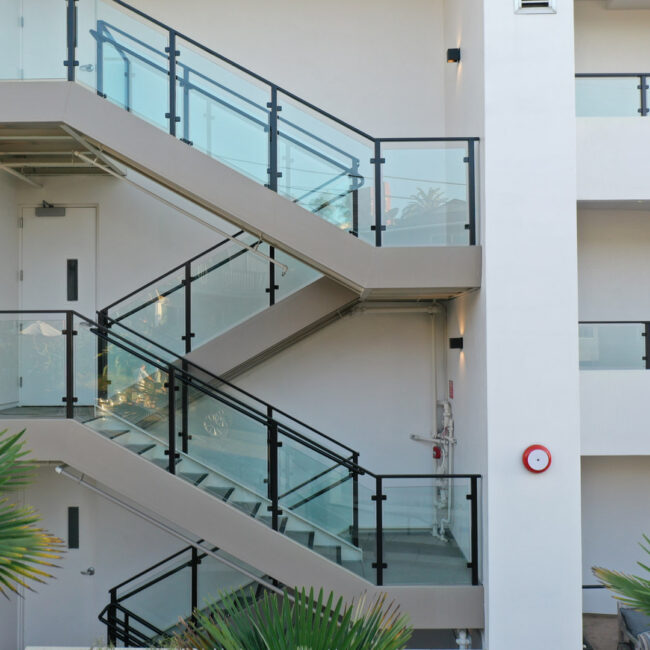

SDCR GLASS CLIP SYSTEM

STRONG WITHOUT SACRIFICING VIEWS

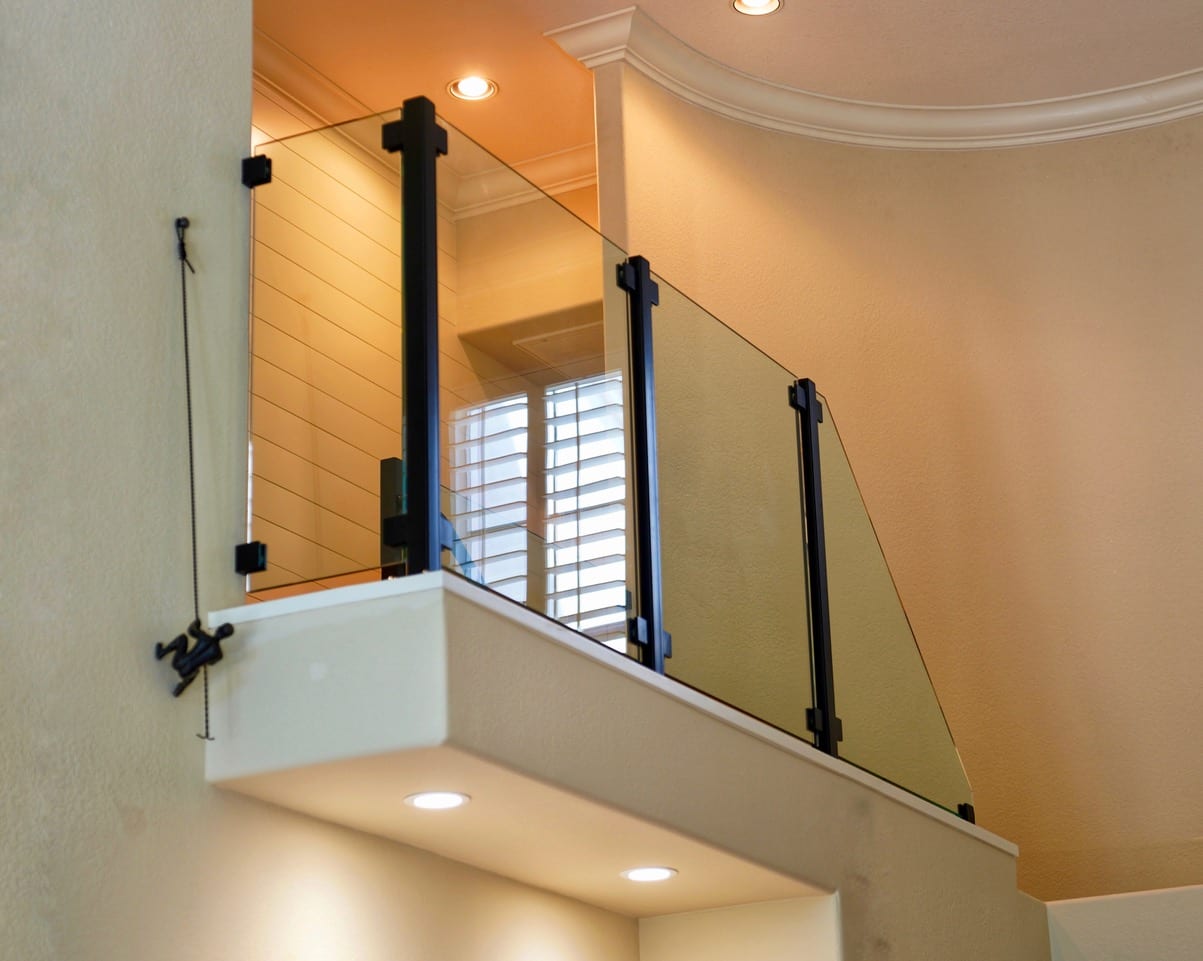

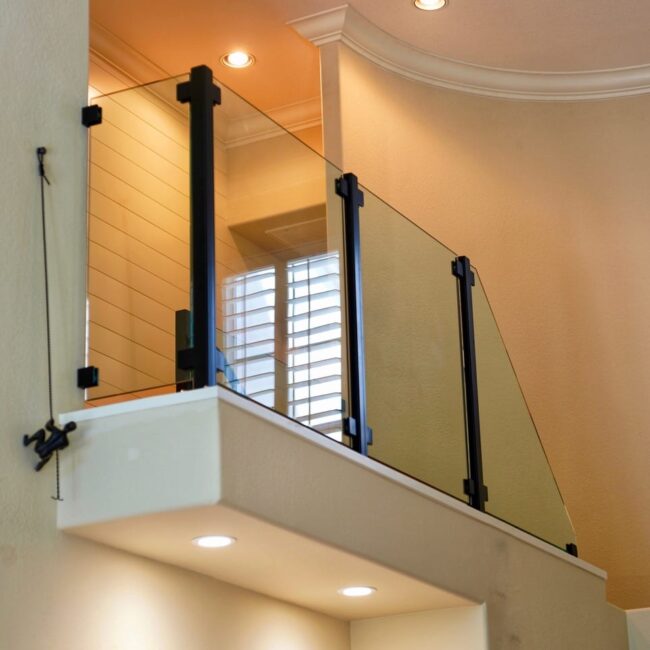

SDCR Glass Clip System offers a premier glass system without a top rail. This system would be made up of our 2×2 Glass Posts designed to accommodate our clip attachment. As there is no top rail with this solution the building code requires the glass to be tempered and laminated. The standard glass sizes available for this system are 7/16″ and 9/16″. SDCR recommends this system for interior or small exterior barrier systems. As with all of our systems these can be customized to suit your projects needs. Reach out to us directly to learn more!

SDCR GLASS CLIP SYSTEM

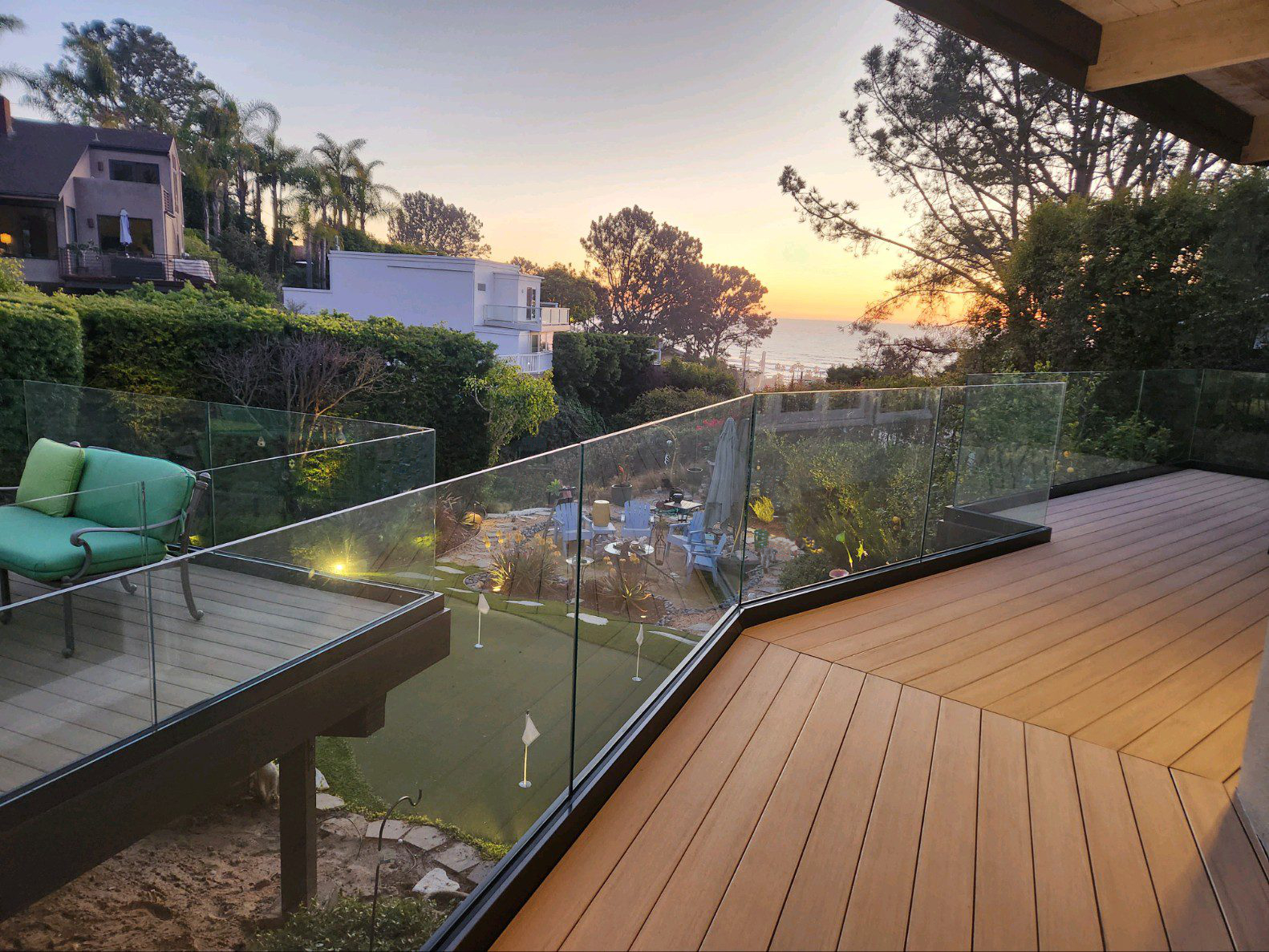

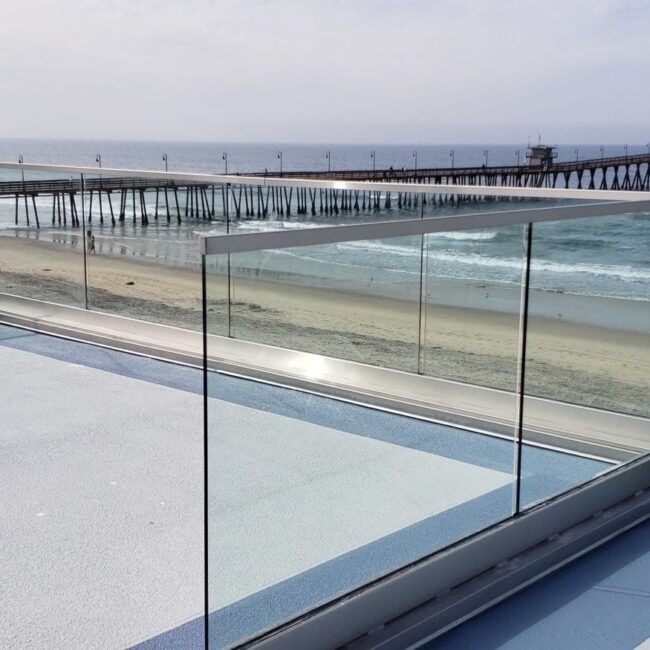

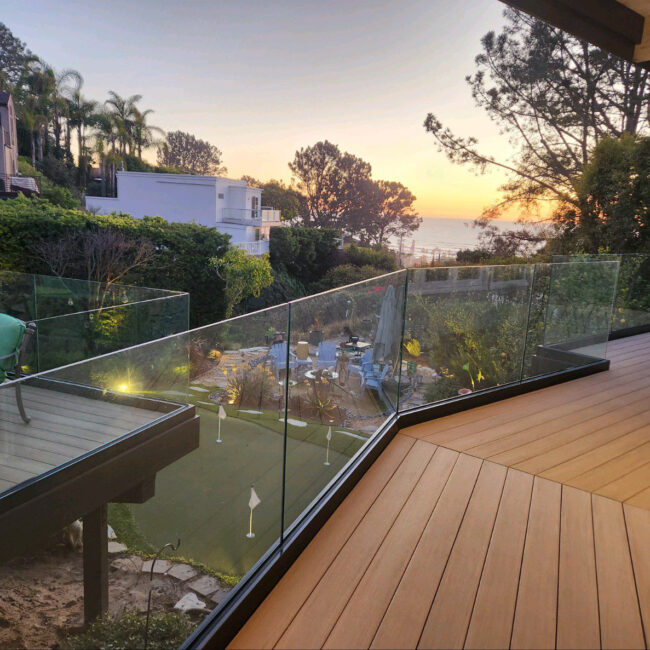

FRAMELESS GLASS SYSTEM

FRAMELESS GLASS SYSTEM

FOR THE ULTIMATE VIEW

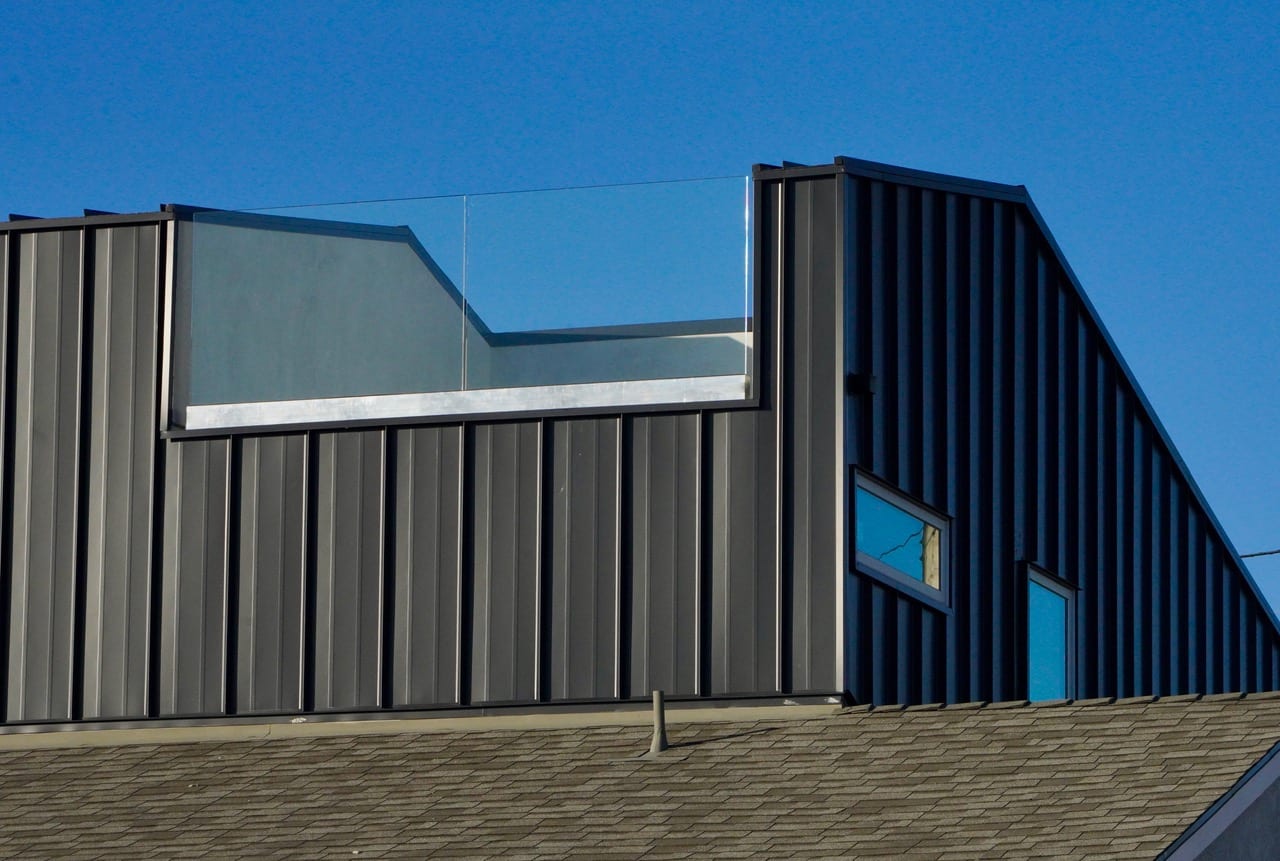

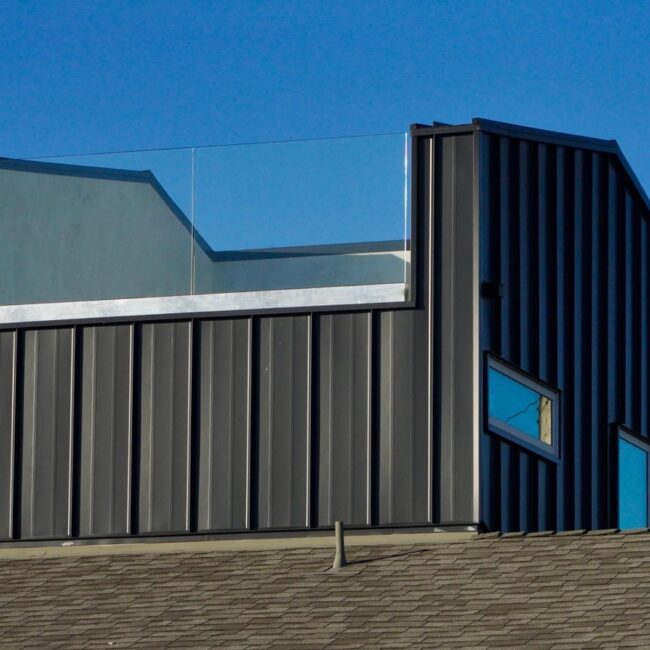

SDCR offers a beautiful frameless glass system which utilizes a base shoe mounting technology. This system does not require any posts which allows for a seamless viewing window. There are small top rail options available with this system to ensure the system is code compliant. Call Us or Email us through our contact page to learn more about this system.

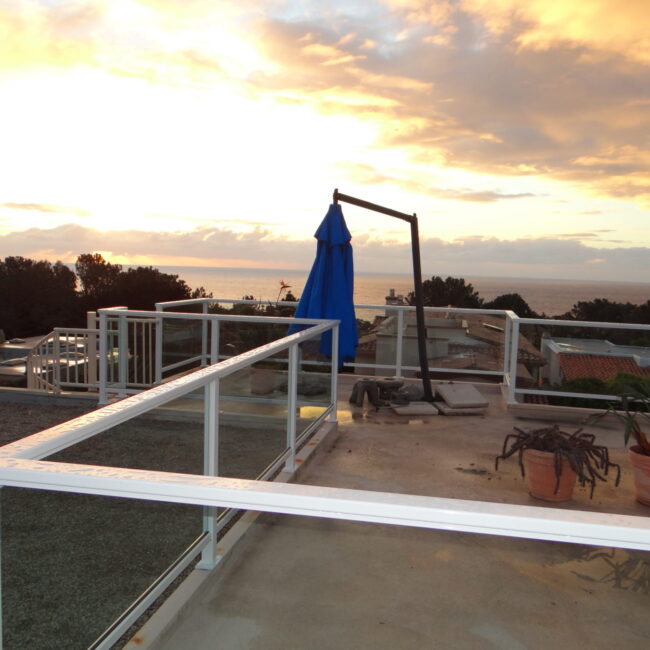

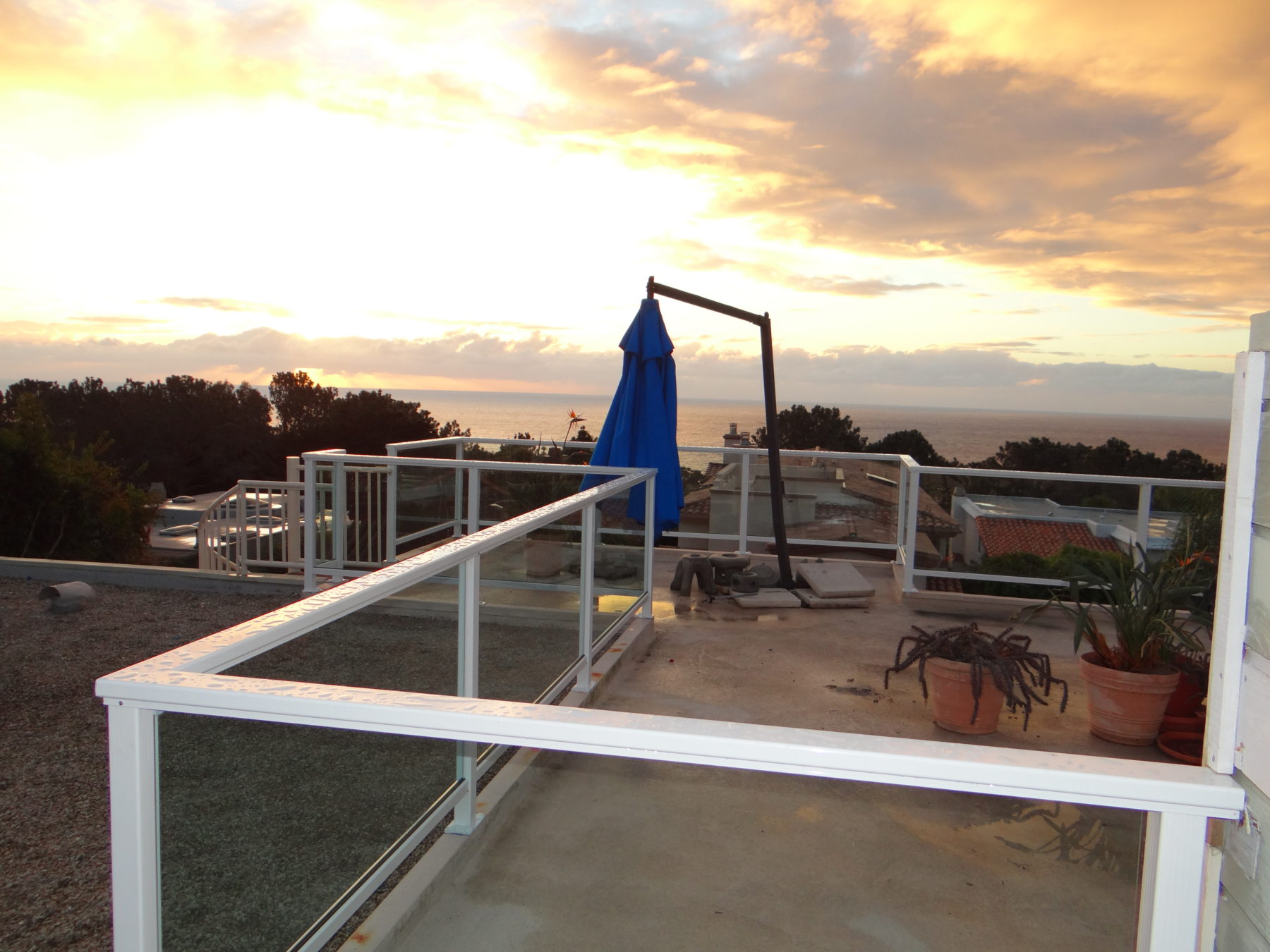

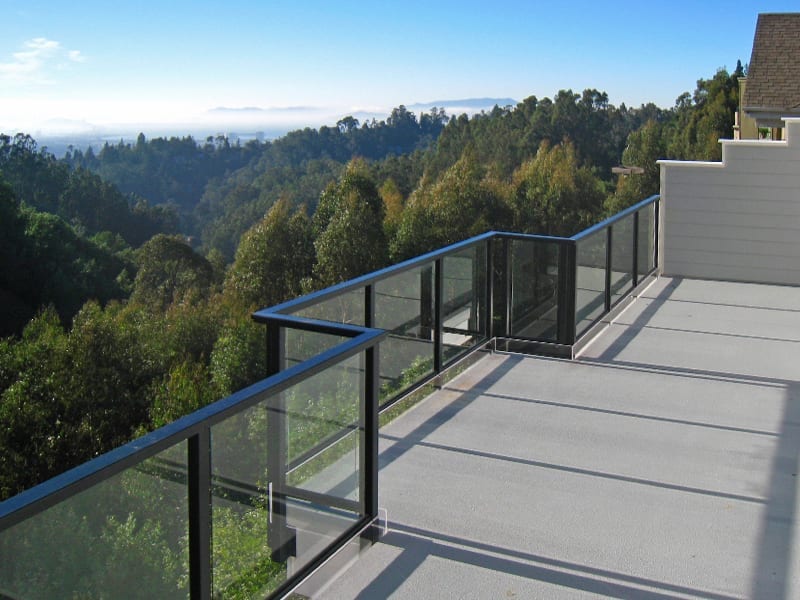

ALUMINUM FRAMED GLASS SYSTEM

ALUMINUM RAILS BY FEENEY

SDCR is proud to be a licensed dealer of the Feeney Aluminum products. This allows us to offer our great customers an alternative to our Steel, Stainless Steel and Wood product lines. The Feeney Glass Railing systems are a fully framed system (top rail, posts and bottom rail). There are variety of color options available with this system to ensure we can accomodate your projects design. Call Us or Email Us through our contact page to learn more about this system.

ALUMINUM FRAMED GLASS SYSTEM

About Glass Railings

Glass railing systems give you uninterrupted views while also providing a high level of safety. We offer both framed (with or without a top rail) as well as completely frameless systems

Our glass railings are crafted using high-quality, tempered glass panels that provide both transparency and durability. The sleek and minimalist aesthetic of our railings makes them a standout choice for those seeking a modern architectural solution.

The glass panels, expertly installed within robust frames, not only deliver a sophisticated appearance but also ensure unobstructed views and ample natural light penetration. The tempered glass undergoes a meticulous manufacturing process to enhance strength and safety, meeting stringent industry standards.

Our glass railing systems are engineered for easy installation and maintenance, offering a seamless integration into various architectural designs. With corrosion-resistant materials and weatherproof construction, our glass railings are suitable for both indoor and outdoor applications, promising longevity and structural integrity.

Professional Installation

San Diego Cable Railings offers turnkey sales and installation services on all of our most popular railing products. By offering both DIY and professional products to our customers, our company is able to furnish turnkey solutions for a wide range of clientele.

Whether your project is large or small,  we strive to outfit all of our customers with a one stop option for cost effective railing systems. For our customers requesting glass railing systems; we also fabricate complete wooden, aluminum and stainless steel options for glass railings and fences.

Cable Railing FAQ

Cable Railing codes and municipalities vary from city, to county, and state. San Diego Cable Railings has furnished cable railings on city inspected projects and permitted deck jobs at a cable spacing of 3”. This is 1.1” less than the required 4” clear spacing, and insures room for cable “spread.” Always check with your local building department for local codes and requirements.

Post spacing and framing details vary on every job and with different types of material. Different suppliers have unique specifications based on specific materials and connection details. Our wooden and steel post systems are recommended at 4′ spacing however we have witnessed a wide variety of materials and specifications. Building code requires that a 4″ sphere cannot pass through the cable infill and that the framing will sustain a specified lateral load at any location on the railing. Heavier framing systems or tighter cable rail spacing will permit larger post spans and larger tension loads making the sphere more difficult to pass through the railing infill. Intermediate posts, pickets, or spreaders can be made from a variety of material types. These can be a good option to reduce cable spread. We are happy to provide design recommendations and installation instructions to our customers. There are also many online resources for information and specifications on cable railings.

We have pre-made cable assemblies which require nothing more than simple hand tools. We also fabricate drilling jigs, and custom kits that contain posts that are pre drilled for ease of installation. Our aim is to provide services and products to satisfy a wide variety of installers. We offer cable assemblies that do not require crimping or swagging. A stainless steel cable cutter is a highly recommended tool for any cutting of ss cable. We offer cable cutters and other accessories in the online store. And don’t worry, we will send you a reminder through email and admin notice banner of your WordPress dashboard.

Estimates for cable railings can be done quickly and accurately via a photograph, line drawing, or architectural plan set that contains lineal footage measurements for your project. Starts and stops, stairs and breaks in the cable can create a large variance in cost so it is important to provide accurate information. Our “QUOTE REQUEST” page will allow uploading of files and photos or you can send us an email at : SHOP@SANDIEGOCABLERAILINGS.COM. Our turn around time for railing quotes is typically 24-48 hours for standard railings. Custom projects or large plan sets may require longer turn around times

1×19 structural braid stainless cable @ 1/8” thickness is very strong. Breaking strength for 1 cable can exceed 1800 lbs, further emphasizing the importance of never over tensioning the cables. A post and railing system will sustain damage long before a cable will ever break. Even steel post systems can be damaged by over tensioning. Always follow recommended tensioning sequences and loading specifications when dealing with stainless steel cable.

High grade stainless steel should not rust. Care and exposure play a large part in the longevity and beauty of your cable railing. Salt spray and high exposure environments are the toughest test for railing systems. Contamination by other metals or environmental agents can also play a role in the corrosion of a railing system. On the coast, any building material will be thoroughly tested. T316 stainless steel cable is much less likely to corrode or show signs of corrosion unless very high levels of salt are present for long periods of time. Stainless steel cable that is kept clean or periodically oiled and not marred in any way is at a much lower risk of corrosion. Lower grade stainless steel systems and imported “low cost” options can be costly over time. 316 Stainless is marine grade cable. It is used on boats, aircraft and ocean front properties and provides the ultimate in corrosion and salt spray resistance. If kept clean and properly maintained, it will not rust. We offer instructions and cleaning/protection products for stainless steel cable.
